Product Details
＋

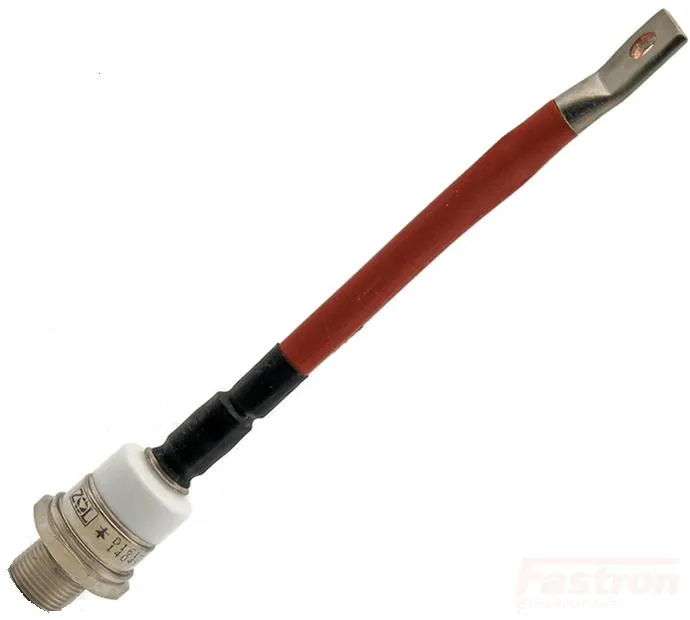

Proton Electrotex D161-400-10-N2 Series Stud Mount Rectifier Diode
Features
- Full blocking capability over wide temperature range
- Hermetic metal case with glass insulator
- Threaded stud
Applications
- Power Supplies
- Uncontrolled Rectifiers
- Oil Cooled Circuits
- Battery Chargers
Specification
| Proton Part Number | D161-400-10-N2 |
| Vrrm | 1000V |
| Diode Configuration | Anode Stud |
| IF(av) @ 100 Deg C | 565 Amp |
| IF(av) @ 134 Deg C | 400 Amp |
| Itsm | 8.3kA |
| VF(to) | 0.90V |
| Tj(max) | 190°C |
| rF | 0.50mΩ |
| Termination Style (Tail) | 12.5mm Round Lug |
| Termination Style (Stud) | 3/4" x 1.5P Stud Length 20mm |
| Tail Length to Stud | 250mm |
| R th(j-c) | 0.1°C/W |
| R th(c-h) | N/A |
| Weight | 250g |
| Mounting Torque | 32 Nm |
| Factory Pack Qty | 5 |
| Country Of Origin | Russia |
| Proton Electrotex Headquarters | Russia |
Datasheet
Note: Custom 20mm thread length!
